Dust Collector, Razaire 530

SKU Z530
Original price $525.00 - Original price $525.00
Original price
$525.00
$525.00 - $525.00
Current price $525.00

The Razertip Razaire Z530 dust collector is a quiet, ultra-efficient, portable, modular dust management system. It comes with a 2 inch standard filter, filter frame and 8 inch hood. Collects dust at the source (rotary carving tools, belt sanders, etc.) to overall shop air filtration.

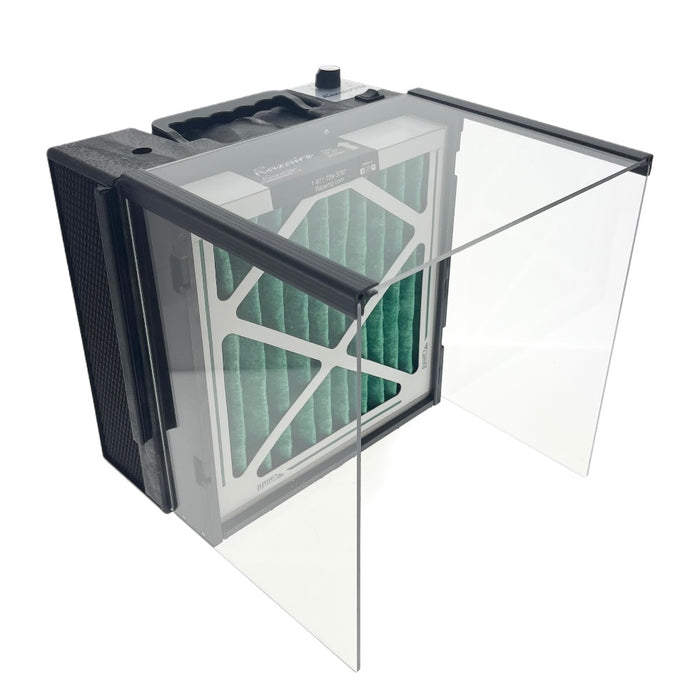

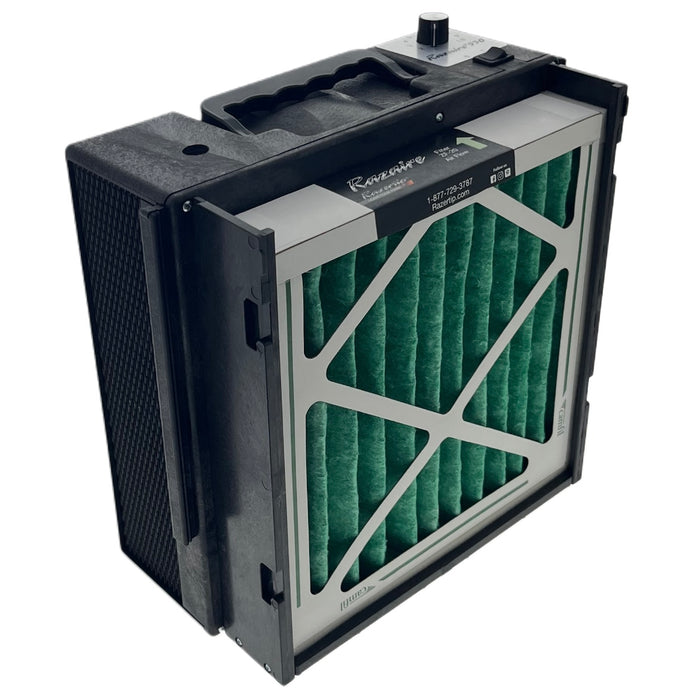

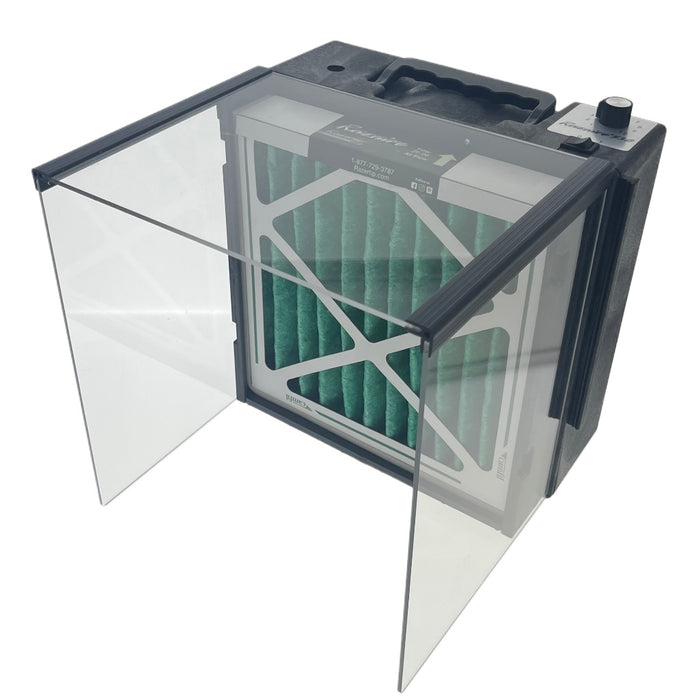

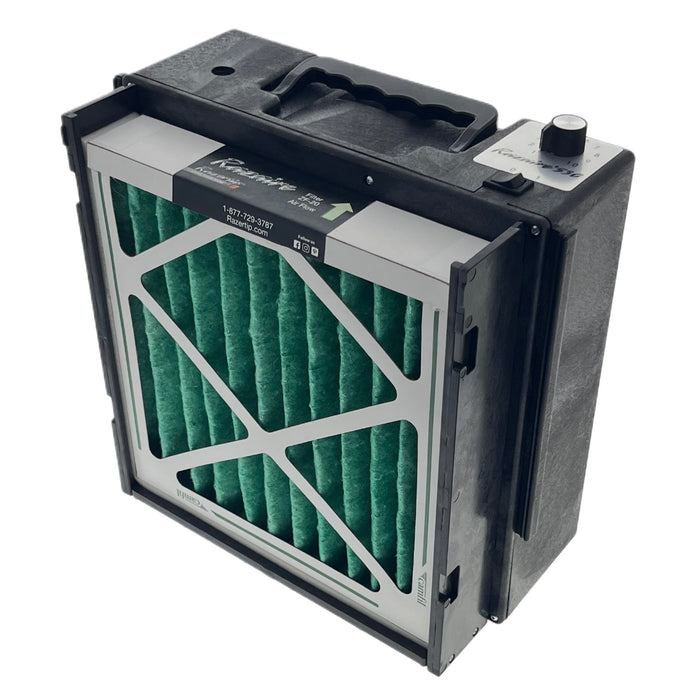

The supplied standard 2" filter is easily removed for cleaning (filter is cleaned by tapping it into a plastic bag or a garbage can). It can be cleaned many times before replacement is necessary. The Flameproof ABS cabinet has a built-in lamp holder that accepts a standard swing-arm lamp (not included), giving you excellent light where you need it most - right at the intake. Also supplied with an 8 inch acrylic hood that breaks down into 3 flat panels for portability.

  • Weight:
    3.3kg / 7.25lb. (with standard 2 inch filter installed).
  • Construction:
    Structurally foamed flame retardant ABS plastic, certified CSA A000 flameproof.
  • Fan:

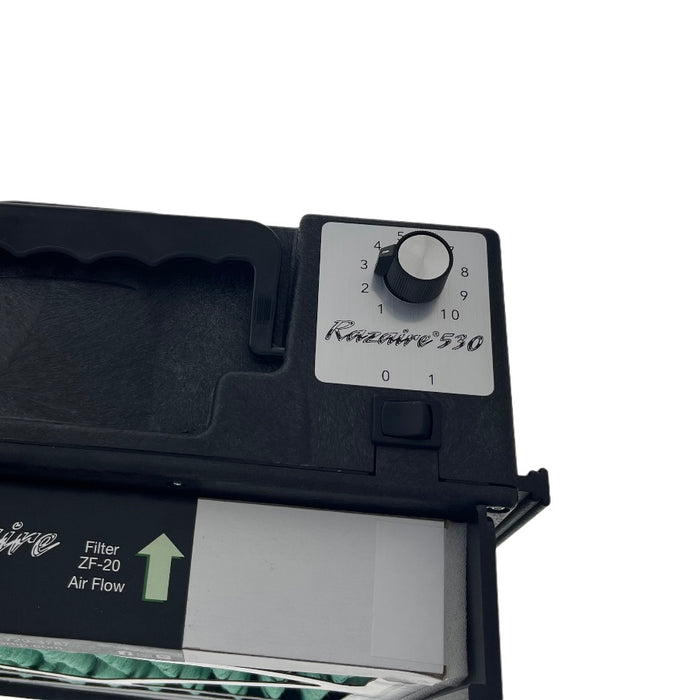

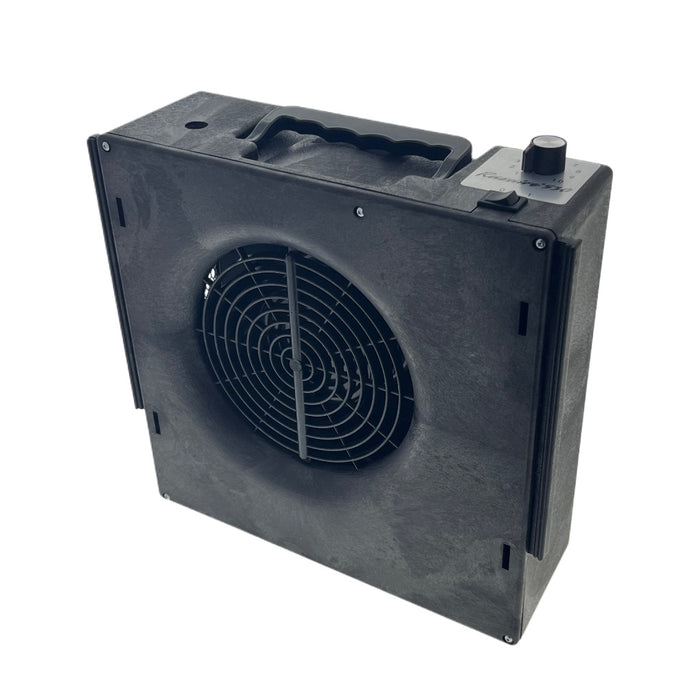

    Variable speed high performance impeller type fan 530 CFM free air, 400 CFM @ .4" static pressure.
  • Electrical ratings:
    120VAC, 60Hz, .67A 100watts.
  • Standard Filter:
    .75" x10.5" x 2" pleated filter rated 30% efficient w/1 micron particle.
  • Safety Certification:
    ETL c-us safety certification for North America.
  • Warranty:
    5 years on the impeller (fan), 10 years on all other parts of the power unit.

120 Volts AC, 60Hz. Safety certified for Canada and the United States.
